Viper 2103V - A guide

This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

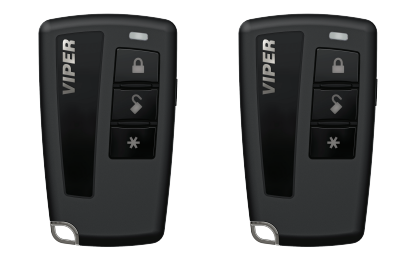

Learning the buttons:

• Lock symbol - Arms the system
• Unlock symbol - Disarms the system
• Star symbol - A panic button (See guide below for more information)
• AUX button - An alternative action button, likely for opening trunk
• Lock + Unlock symbol - Press or hold for alternative actions

Panic mode:

If you are threatened in or near your vehicle, you can attract attention by triggering the system with your remote. Hold the star button for approximately two seconds, to enter Panic Mode. The siren sounds and the parking lights flash for the programmed siren duration. To stop Panic Mode at any time, press the star button.

Audible mode:

If you wish for the vehicle to make a honk alongside the unlock/lock activations, you can press the AUX button quickly right before you perform an action, this will allow this action only to make a noise. This can be good if you are a distance away from your vehicle and cannot visually tell if you are able to lock it.

Battery information:

When the remote control battery begins to weaken, the operating range will be reduced.

If communication range is diminished, or the remote control ceases to function, the remote battery should be replaced. It is recommended to have your battery replaced by an Authorized Dealer. To gain access to the battery, the rear case will need to be separated from the transmitter. In some cases, remotes may have a small security screw(s) that needs to be removed prior to separating.

Note: USB-Rechargeable remote control batteries are not intended to be replaced. If your remote fails to charge, contact your Authorized Dealer.
