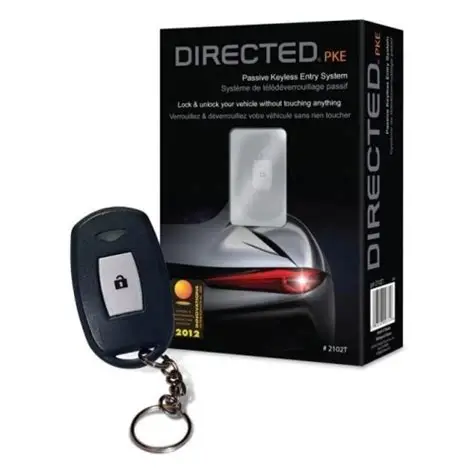

Viper 2102T - A guide

This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.

Automatic locking/unlocking:

This key fob includes a feature called the "Active zone", which is a zone around the vehicle that can sense whether or not the key fob is in it or not.

• When in the active zone with the key fob, the LED on the device will flash green and the car doors will automatically be unlocked.
• Once you leave the active zone, the LED on the key fob will flash red, and the car doors will be locked.
• The active zone feature also supports the use of a engine kill switch (Optional), which can be deactivated when car doors are unlocked and activated when car doors are locked.

Learning the buttons:

• Press and hold the button to until the LED on the remote flashes red. Parking lights on the vehicle will flash twice to confirm the doors have been unlocked.
• Press and release the button for 1 second. The LED on the remote will flash red indicating that the command is being sent. Parking lights will flash once to confirm doors have been locked.

Valet mode:

When the feature is enabled, the automatic locking/unlocking operation upon entering the active zone will be disabled. However, manual locking/unlocking of the vehicle is possible in valet mode, as long as the ignition is off.

• When inside of the active zone, quick press the button twice, then press and hold until the remote LED flashes red to confirm the system has entered valet mode.
• Within the active zone, quick press the button twice, then press and gold until the remote LED flashes red to confirm the system has exited valet mode.

SmartLock feature:

The purpose of the SmartLock feature is to prevent the doors from unwanted unlocking/locking when entering/exiting the active zone multiple times for a pre-programmed delay (No delay*,1, 3 or 5 minutes). This is practical in situations such as loading/unloading packages.

1. Exit the active zone with the valid key fob in hand. This action will lock the doors and initiate the pre-programmed timer.
2. Re-enter the zone within the pre-programmed delay (1, 3 or 5 minutes) to activate the SmartLock feature. As long as you are still within the preprogrammed delay and have the valid key fob in hand, the doors will unlock.
3. At this point, the SmartLock timer is reset and frozen. If you exit the zone with the valid key fob, the doors will not lock and a fresh timer will start.
4. Again, if you re-enter the zone within the pre-programmed delay, the doors will not unlock since the door is already unlocked from step 2.
5. If step 3 and 4 are repeated many times, the lock/unlock operation will never occur thus making it convenient during loading/unloading, as long as the doors are not opened or closed during the whole sequence.
6. Once the valid key fob remains out of the active zone longer than the pre-programmed delay, the doors will automatically lock. At this point, the Smartlock feature will be disabled. It is important to note that the user can always lock the doors immediately at any moment by quickly pressing and releasing the key fob button (See "Manual unlocking and locking of the vehicle" on page 7).
