Front view option:

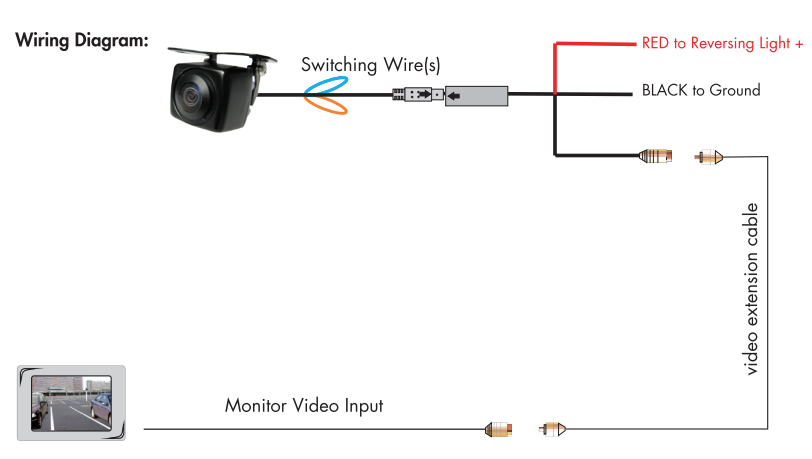

PM-80DLR functions as a rear-view camera as standard. For front view application, please cut the thin BLUE wire near the camera lead and restart power to see the image reversed.
Guideline option:
PM-80DLR has parking guidelines as a default. To remove guidelines, cut the thin BROWN wire near the camera lead and the guidelines will now be removed.
Bracket mounting:
- Select a flat and centered location near the number plate lamp at the rear of the vehicle to mount the camera.
- Attach the 3M tape to the bracket of the camera and drill a small hole for the first screw.
- Use a screwdriver to fix the first screw, but don't tighten it yet.
- Insert camera wire through newly drilled hole and mount securely in place.
- Mark the position suitable for the seconds screw and drill a small hole for it.
- Fix the seconds screws and tighten both screws.
