Kapture Motorbike Smart Monitor - Installation

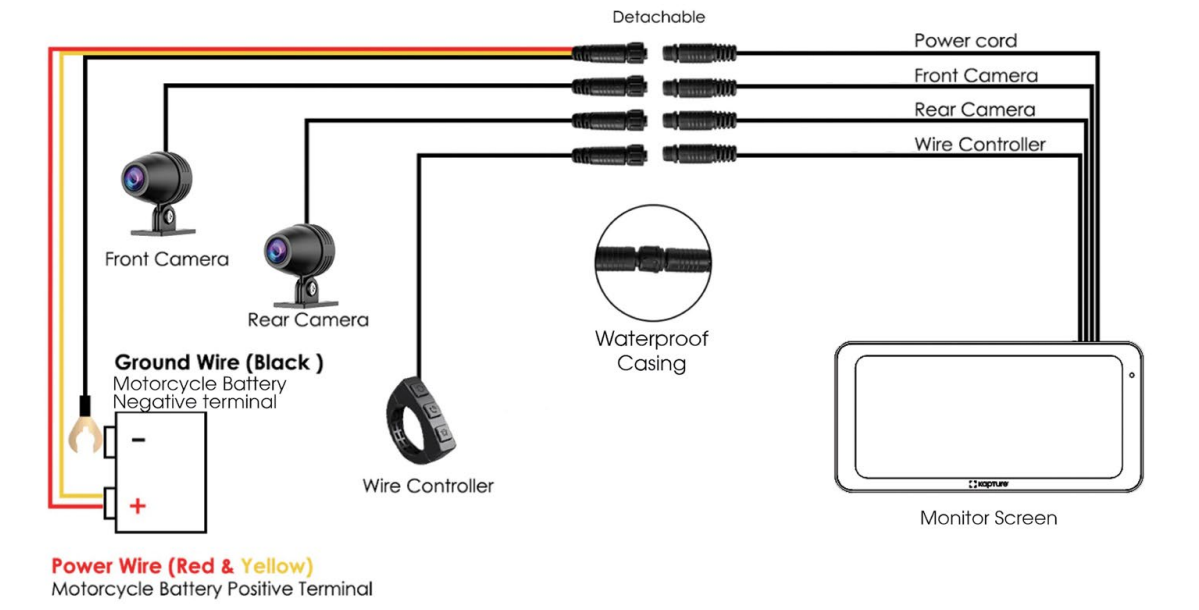

1. Connect motorbike CarPlay Monitor following the Installation Wiring Overview 3.1 and mount the Monitor as shown below under "Mounting".
2. Connect ACC power supply to the Monitor with the Red Power Wire and run it securely under the petrol tank to the bike’s positive battery terminal and connect. Then, connect the Black Ground Wire to the Monitor and run it securely under the petrol tank to the bike’s negative battery terminal and connect.
3. Attach Handlebar Controller where safest for easy access. Connect wire and run it securely back to Monitor and connect.
4. Attach front camera securely to the bike to provide a clear view of the road ahead. Connect wire to camera and run it securely back to Monitor and connect.
5. Attach rear camera securely to bike to provide a clear view of the road behind. Connect wire to camera and run it securely back under seat and petrol tank to Monitor and connect.
6. At every step, secure and tuck away any excess wiring safely using fasteners such as cable ties - leaving enough wiring length to avoid restricting steering movement and damaging connectors.

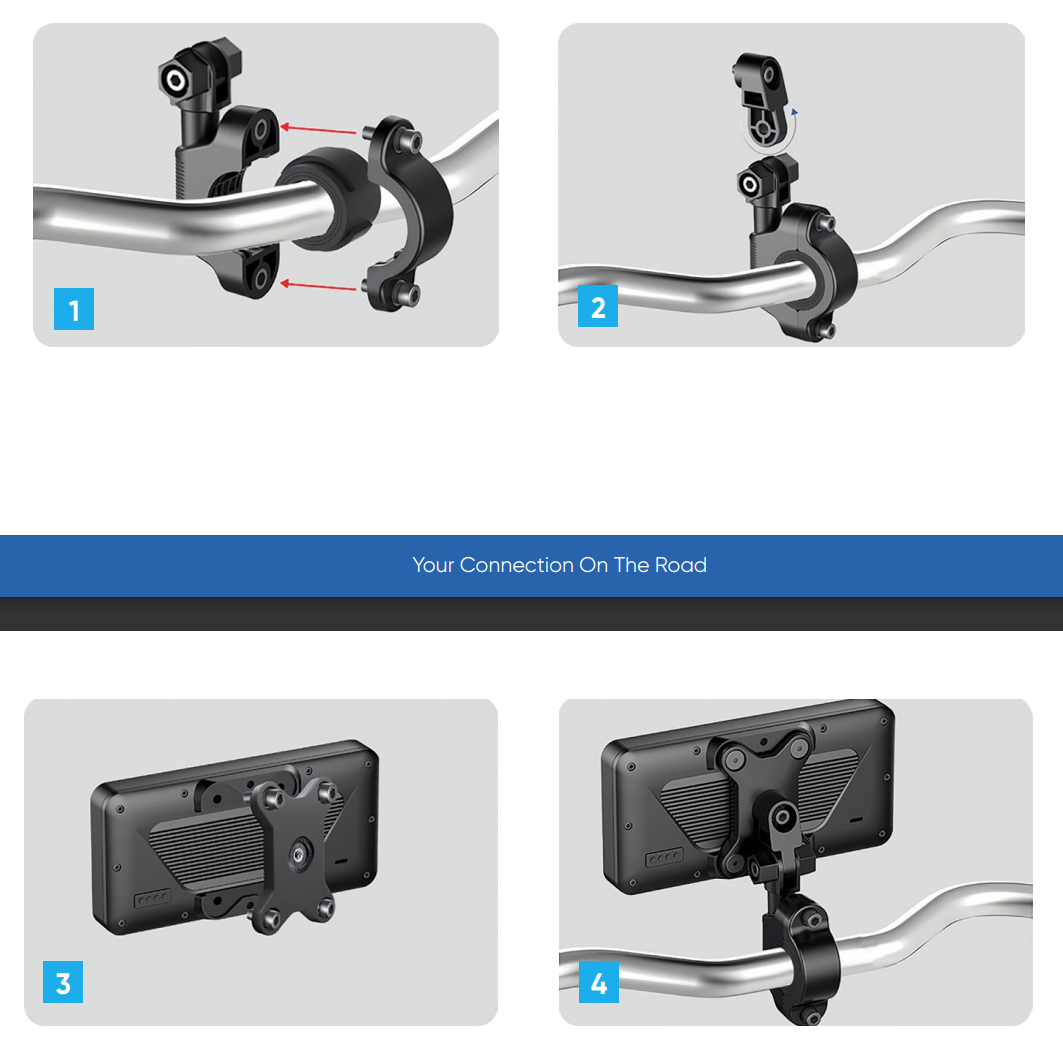

Mounting the monitor:

1. Attach the mount to handlebar using the Allen Key provided.
2. Clamp the connecting rod to the mount.
3. Secure the device to the support bracket with four screws.
4. Installation complete

Installing SD card:

Micro SD card slot is concealed under the protective waterproof plate and gasket.

Remove the screws with a Phillips Screwdriver - not provided.

Insert the Micro SD card with the chip side facing up until you hear a click. After inserting micro SD card, ensure the gasket and protective plate is securely screwed and sealed into place
