DSR1 Bluetooth Connection Solutions

Modified on Thu, 28 Nov, 2024 at 11:57 AM

I'm having trouble connecting to my DSR1 via Bluetooth.

How do I fix this?

NOTE: If your DSR1 mainboard firmware is v1.5.6.0 or newer, it requires both a Bluetooth update and Maestro re-flash.
Please view and refer to "Software Update Instructions" for more information.

When using Bluetooth to connect to the DSR1, use Rockford Fosgate® PerfectTune™ for Apple or Android (download below.)
DO NOT use your mobile device's built-in Bluetooth connection.

Launch PerfectTune®
• Open the PerfectTune® app on your Android or Apple device.
Open Device Manager

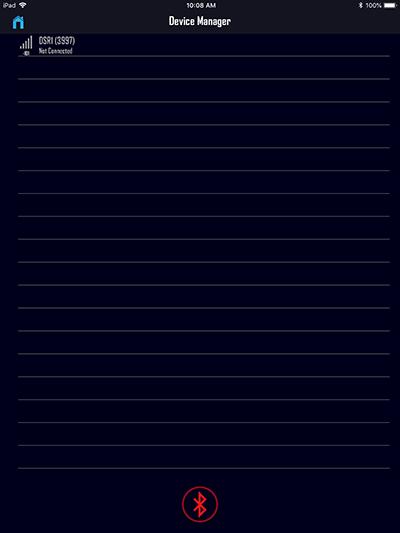

• The red Bluetooth icon on the bottom of PerfectTune® indicates it is not connected to any DSR1 devices.
• Press the red Bluetooth icon to open the Device Manager.
Select Desired DSR1
• Your DSR1 unit will be appear in the list of available DSR1 devices.
• Android devices must turn-on "Location Services" in order to activate the phone's Bluetooth radio.
• If working with multiple devices, each DSR1 that is properly powered-on will appear in the Device Manager.
• Select the desired DSR1 device to connect with PerfectTune®.

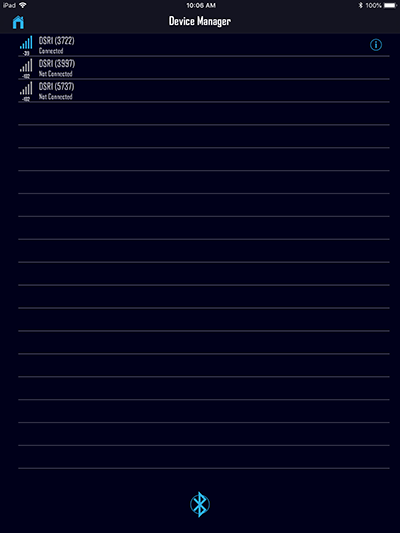

Verify Connection
• The Bluetooth icon on the bottom of PerfectTune® will turn to blue.
• Blue indicates the DSR1 is actively connected to PerfectTune®.

Diagnostic Menu
• Select the blue "i" icon to the right of the connected DSR1 to view the following info:

DSR1
• Manufacturer Name
• Model Number
• Serial Number
• Hardware Version
• Firmware Version
• Bootloader Version

MAESTRO
• Serial Number
• Firmware Name
• Hardware Version
• Firmware Version
• Bootloader Version
