How do I wire the RF-HLC high level converter?
The RF-HLC is a static (non-adjustable) 2-channel high level converter.
• RF-HLC = 2-channel high-to-low level converter [Download Manual]

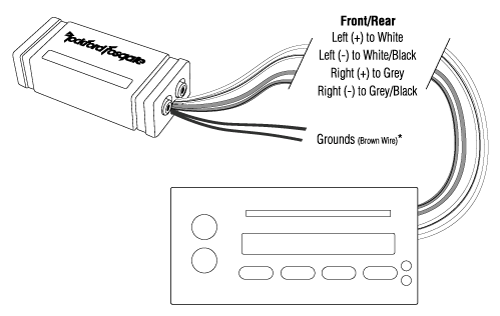

Channels
Left (+) to White
Left (-) to White/Black
Right (+) to Grey
Right (-) to Grey/Black
